MAT 350: Vectors, Vector Arithmetic, and Operations

Dr. Gilbert

August 5, 2025

Vectors (Definition)

  • A vector is a quantity with both magnitude and direction.
  • Vectors are often represented as arrays of numbers:

\[\vec{v} = \left[\begin{array}{r} v_1 \\ v_2 \\ \vdots \\ v_n \end{array}\right] \text{(column vector)} \qquad \vec{u} = \left[\begin{array}{r} u_1 & u_2 & \cdots & u_n \end{array}\right] \quad \text{(row vector)}\]

Example: Consider the vectors \(\vec{v} = \begin{bmatrix} 1\\ -8\\ 3/2\end{bmatrix}\) and \(\vec{u} = \begin{bmatrix} -11 & 17 & 0 & \pi\end{bmatrix}\)

Transposing Vectors

  • We can turn a column vector into a row vector (and vice-versa) by taking its transpose.

  • We denote the transpose operation via the superscript \(^T\).

  • Consider the vector \(\vec{v}\) and its transpose below.

\[\vec{v} = \begin{bmatrix} v_1\\ v_2\\ \vdots \\ v_n\end{bmatrix} \qquad \vec{v}^T = \begin{bmatrix} v_1 & v_2 & \cdots & v_n\end{bmatrix}\]

Transposing Vectors (Examples)

Example: For each of the vectors below, construct the transpose.

  1. Let \(\vec{v} = \begin{bmatrix} 1/2\\ -11\\ 3\\ 0\\ 8\end{bmatrix}\), then \(\vec{v}^T\) is given by…

\[\vec{v}^T = \begin{bmatrix} 1/2 & -11 & 3 & 0 & 8\end{bmatrix}\]

  1. Let \(\vec{u} = \begin{bmatrix} 8 & -1\end{bmatrix}\), then \(\vec{u}^T\) is the vector…

\[\vec{u}^T = \begin{bmatrix} 8\\ -1\end{bmatrix}\]

Vector Addition and Subtraction

Addition and subtraction of vectors is done component-wise:

\[\vec{u} + \vec{v} = \begin{bmatrix} u_1 + v_1 \\ u_2 + v_2\\ \vdots \\ u_n + v_n \end{bmatrix} \quad \vec{u} - \vec{v} = \begin{bmatrix} u_1 - v_1 \\ u_2 - v_2\\ \vdots\\ u_n - v_n \end{bmatrix}\]

Example: Consider the vectors \(\vec{u}\), \(\vec{v}\), and \(\vec{w}\) below. For those that are compatible, compute the sums and differences of the vectors. For those that are not compatible, describe why.

\[\vec{u} = \begin{bmatrix} -5\\ 0\\ 8\\ 1\end{bmatrix}~~~~~\vec{v} = \begin{bmatrix} 1\\ -1\\ 1\end{bmatrix}~~~~~\vec{w} = \begin{bmatrix} 1\\ 0\\ 0\\ -9\end{bmatrix}\]

Vector Addition And Subtraction

Example: Consider the vectors \(\vec{u}\), \(\vec{v}\), and \(\vec{w}\) below. For those that are compatible, compute the sums and differences of the vectors. For those that are not compatible, describe why.

\[\vec{u} = \begin{bmatrix} -5\\ 0\\ 8\\ 1\end{bmatrix}~~~~~\vec{v} = \begin{bmatrix} 1\\ -1\\ 1\end{bmatrix}~~~~~\vec{w} = \begin{bmatrix} 1\\ 0\\ 0\\ -9\end{bmatrix}\]

  • Vector \(\vec{v}\)’s dimension doesn’t match, so it is not compatible with \(\vec{u}\) or \(\vec{w}\)

\[\vec{u} + \vec{w} = \begin{bmatrix} -5\\ 0\\ 8\\ 1\end{bmatrix} + \begin{bmatrix} 1\\ 0\\ 0\\ -9\end{bmatrix} = \begin{bmatrix} -4\\ 0\\ 8\\ -8\end{bmatrix}\]

Vector Addition And Subtraction

Example: Consider the vectors \(\vec{u}\), \(\vec{v}\), and \(\vec{w}\) below. For those that are compatible, compute the sums and differences of the vectors. For those that are not compatible, describe why.

\[\vec{u} = \begin{bmatrix} -5\\ 0\\ 8\\ 1\end{bmatrix}~~~~~\vec{v} = \begin{bmatrix} 1\\ -1\\ 1\end{bmatrix}~~~~~\vec{w} = \begin{bmatrix} 1\\ 0\\ 0\\ -9\end{bmatrix}\]

  • Find \(\vec{u} - \vec{w}\)


  • Find \(\vec{w} - \vec{u}\)

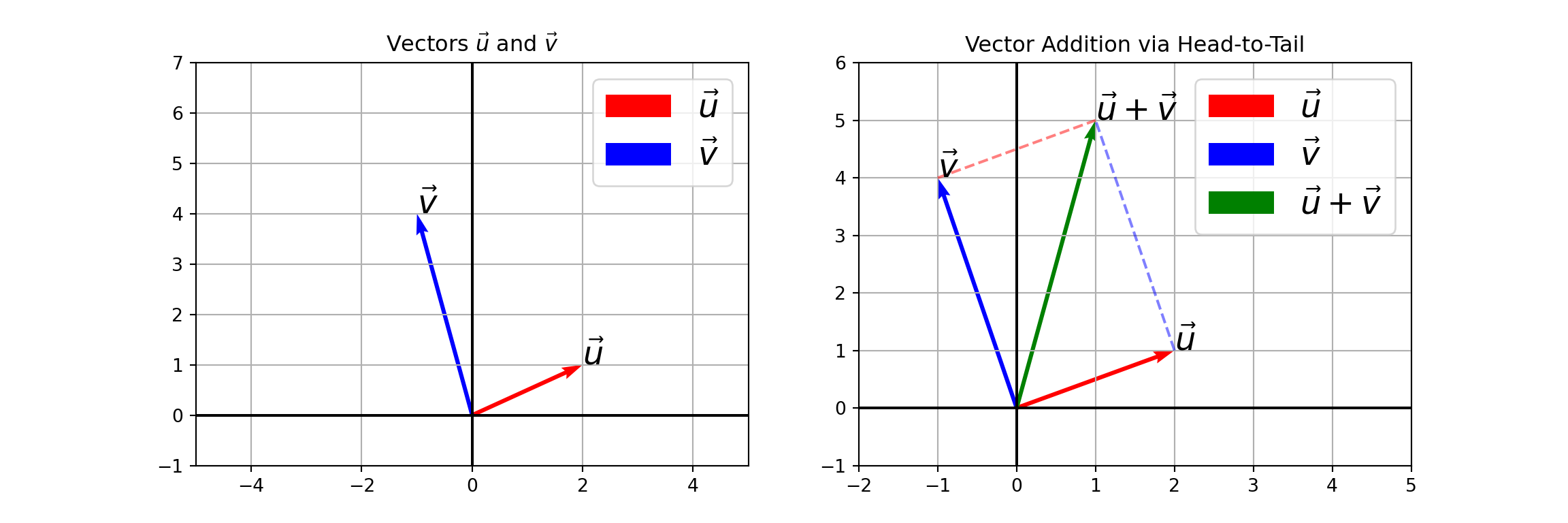

Geometry of Vector Addition

  • We often say that vector addition is conducted head to tail.
  • This phrase refers to the geometry of vector addition.
  • Consider the plots below which shows the sum of the vectors \(\vec{u}\) and \(\vec{v}\) where \(\vec{u} = \begin{bmatrix} 2\\ 1\end{bmatrix}\) and \(\vec{v} = \begin{bmatrix} -1\\ 4\end{bmatrix}\).

Geometry of Vector Addition

  • We often say that vector addition is conducted head to tail.
  • This phrase refers to the geometry of vector addition.
  • Consider the plots below which shows the sum of the vectors \(\vec{u}\) and \(\vec{v}\) where \(\vec{u} = \begin{bmatrix} 2\\ 1\end{bmatrix}\) and \(\vec{v} = \begin{bmatrix} -1\\ 4\end{bmatrix}\).

Scalar Multiplication

Multiplying a vector by a scalar stretches, shrinks, and/or reflects the vector. For example if \(a\) is a scalar and \(\vec{v}\) is a vector, then

\[a \vec{v} = \begin{bmatrix} a v_1 \\ a v_2\\ \vdots\\ av_n \end{bmatrix}\]

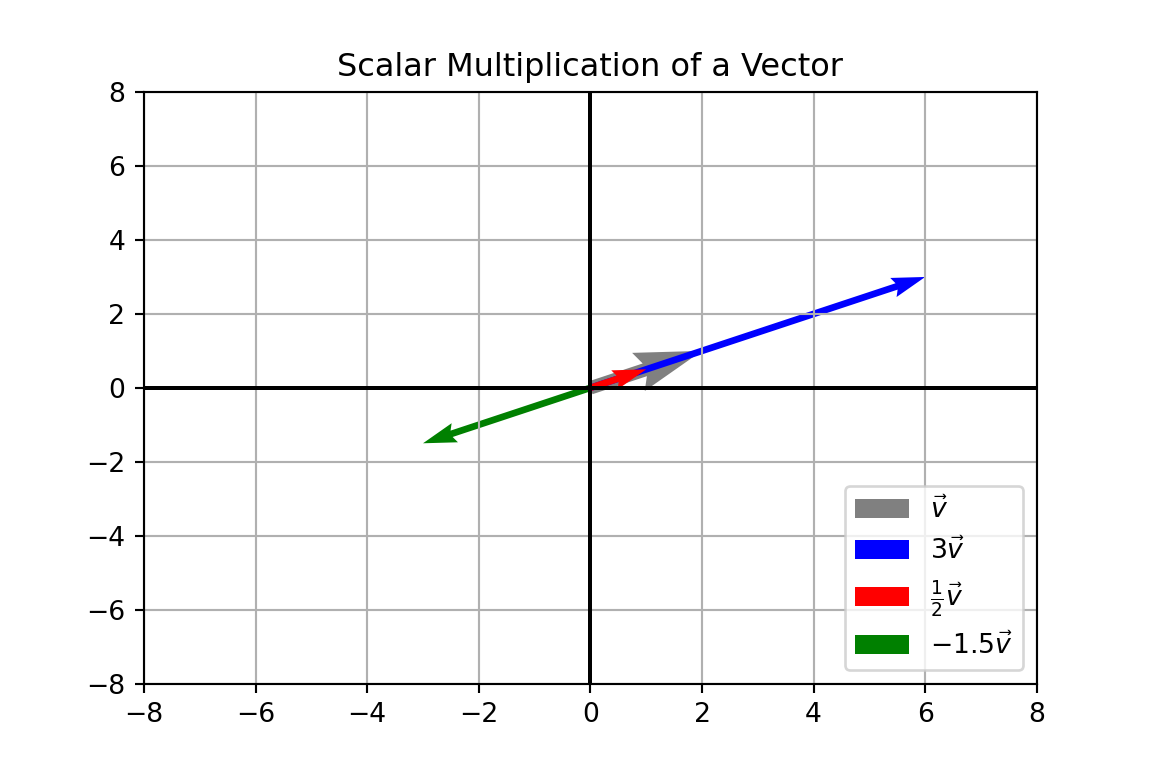

Example: Consider the vector \(\vec{v} = \begin{bmatrix} 2\\ 1\end{bmatrix}\) and scalars \(a_1 = 3\), \(a_2 = 0.5\), and \(a_3 = -1.5\).

  1. \(a_1\vec{v} = 3\begin{bmatrix} 2\\ 1\end{bmatrix} = \begin{bmatrix} 3\left(2\right)\\ 3\left(1\right)\end{bmatrix} = \begin{bmatrix} 6\\ 3\end{bmatrix}\)
  2. Find \(a_2\vec{v}\)
  3. Find \(a_3\vec{v}\)

Scalar Multiplication

Example: Consider the vector \(\vec{v} = \begin{bmatrix} 2\\ 1\end{bmatrix}\) and scalars \(a_1 = 3\), \(a_2 = 0.5\), and \(a_3 = -1.5\).

  1. \(a_1\vec{v} = 3\begin{bmatrix} 2\\ 1\end{bmatrix} = \begin{bmatrix} 3\left(2\right)\\ 3\left(1\right)\end{bmatrix} = \begin{bmatrix} 6\\ 3\end{bmatrix}\)


  2. Find \(a_2\vec{v}\)


  3. Find \(a_3\vec{v}\)

Scalar Multiplication (Additional Examples)

Example: Consider the vectors \(\vec{u} = \begin{bmatrix} 9\\ 0\\ 3\end{bmatrix}\) and \(\vec{v} = \begin{bmatrix} -12\\ -6\end{bmatrix}\), along with scalars \(a_1 = -3\) and \(a_2 = 1/3\). Construct the following vectors.

\[(i)~~a_1\vec{u}~~~~~~~~(ii)~~a_1\vec{v}~~~~~~~~(iii)~~a_2\vec{u}~~~~~~~~(iv)~~a_2\vec{v}\]

Vector Multiplication?

We can define multiple types of vector products here.

  • Haddamard Product: An Element-wise product, not used in MAT350 but used heavily in machine learning, AI, signal processing, and probabilistic modeling
  • Inner Product or Dot Product
  • Cross-Product
  • Outer Product

Inner Product / Dot Product

Dot Product: Given two vectors \(\vec{u}\) and \(\vec{v}\) of the same size, we can define the dot product of \(\vec{u}\) and \(\vec{v}\) to be

\[\vec{u}\cdot \vec{v} = \begin{bmatrix} u_1\\ u_2\\ \vdots\\ u_n\end{bmatrix}\cdot \begin{bmatrix} v_1\\ v_2\\ \vdots\\ v_n\end{bmatrix} = u_1v_1 + u_2v_2 + \cdots + u_nv_n\]

Inner Product / Dot Product

Dot Product: Given two vectors \(\vec{u}\) and \(\vec{v}\) of the same size, we can define the dot product of \(\vec{u}\) and \(\vec{v}\) to be

\[\vec{u}\cdot \vec{v} = u_1v_1 + u_2v_2 + \cdots + u_nv_n\]

Example: For each pair of vectors below, compute the dot product.

  • Given \(\vec{u_1} = \begin{bmatrix} 2\\ -3\end{bmatrix}\) and \(\vec{u_2} = \begin{bmatrix} 8\\ -4\end{bmatrix}\), the dot product \(\vec{u_1}\cdot\vec{u_2}\) is…

\[\vec{u_1} \cdot \vec{u_2} = 2\left(8\right) + \left(-3\right)\left(-4\right) = 16 + 12 = 28\]

  • Given \(\vec{v_1} = \begin{bmatrix} -9\\ 7\\ 0\\ 1\end{bmatrix}\) and \(\vec{v_2} = \begin{bmatrix} 1\\ -1\\ 5\\ -2\end{bmatrix}\), the dot product \(\vec{v_1}\cdot \vec{v_2}\) is…

Inner Product / Dot Product

Dot Product: Given two vectors \(\vec{u}\) and \(\vec{v}\) of the same size, we can define the dot product of \(\vec{u}\) and \(\vec{v}\) to be

\[\vec{u}\cdot \vec{v} = u_1v_1 + u_2v_2 + \cdots + u_nv_n\]

We’ll find many uses for the dot product between two vectors. For example,

  1. the dot product between a vector and itself gives the square of the magnitude (length) of the vector.

\[\vec{x}\cdot\vec{x} = x_1^2 + x_2^2 + \cdots + x_n^2 = \left|\left|\vec{x}\right|\right|^2\]

So, \(\left|\left|\vec{x}\right|\right| = \sqrt{\vec{x}\cdot\vec{x}}\)

Example: Find the magnitude of each vector \(\vec{u} = \begin{bmatrix} 3\\ 4\end{bmatrix}\) and \(\vec{v} = \begin{bmatrix} 1\\ -3\\ 5\end{bmatrix}\)

Inner Product / Dot Product

Dot Product: Given two vectors \(\vec{u}\) and \(\vec{v}\) of the same size, we can define the dot product of \(\vec{u}\) and \(\vec{v}\) to be

\[\vec{u}\cdot \vec{v} = u_1v_1 + u_2v_2 + \cdots + u_nv_n\]

We’ll find many uses for the dot product between two vectors. For example,

  1. the dot product between two vectors \(\vec{u}\) and \(\vec{v}\) can be used to determine the angle (\(\theta\)) between the vectors

\[\cos\left(\theta\right) = \frac{\vec{u}\cdot\vec{v}}{||\vec{u}||||\vec{v}||}\]

Inner Product / Dot Product

Dot Product: Given two vectors \(\vec{u}\) and \(\vec{v}\) of the same size, we can define the dot product of \(\vec{u}\) and \(\vec{v}\) to be

\[\vec{u}\cdot \vec{v} = u_1v_1 + u_2v_2 + \cdots + u_nv_n\]

We’ll find many uses for the dot product between two vectors. For example,

  1. the dot product between two vectors \(\vec{u}\) and \(\vec{v}\) can be used to determine the angle (\(\theta\)) between the vectors

\[\cos\left(\theta\right) = \frac{\vec{u}\cdot\vec{v}}{||\vec{u}||||\vec{v}||}\]

Which is particularly useful to quickly determine whether two vectors are orthogonal (they meet at a \(90^\circ\) angle).

Example: Determine whether \(\vec{u} = \begin{bmatrix} 1\\ 3\\ 11\end{bmatrix}\) and \(\vec{v} = \begin{bmatrix} -4\\ 5\\ -1\end{bmatrix}\) are orthogonal.

Cross Product (3D only)

Cross Product: When in three dimensions, we can define the cross product between two vectors \(\vec{u}\) and \(\vec{v}\).

\[\vec{u} \times \vec{v} = \begin{bmatrix} u_1\\ u_2\\ u_3\end{bmatrix}\times \begin{bmatrix} v_1\\ v_2\\ v_3\end{bmatrix} = \begin{bmatrix} u_2 v_3 - u_3 v_2 \\ u_3 v_1 - u_1 v_3 \\ u_1 v_2 - u_2 v_1 \end{bmatrix}\]

  • The result of taking the cross product is a new vector \(\vec{w}\) which is orthogonal (perpendicular) to both \(\vec{u}\) and \(\vec{v}\).

Note: Since there are two opposing directions such a vector could point in, we use the “right-hand rule” to determine which direction the cross-product points.

Example: For each pair of vectors below, compute the cross-product.

  • \(\vec{e_1} = \begin{bmatrix} 1\\ 0\\ 0\end{bmatrix}\) and \(\vec{e_2} = \begin{bmatrix} 0\\ 1\\ 0\end{bmatrix}\)
  • \(\vec{v_1} = \begin{bmatrix} 1\\ -2\\ -1\end{bmatrix}\) and \(\vec{v_2} = \begin{bmatrix} 0\\ 4\\ 12\end{bmatrix}\)

Outer Product

. . .

There’s an additional vector product, called an outer-product, but we’ll wait until we discuss matrices next time in order to define it.

. . .

We’ll also briefly revisit the inner-product at that time.

Divide and… Nope

While division exists for scalars, and we’ve taken advantage of it as an operation that “undoes” multiplication, division by vectors is not a defined operation.

Vector Norms

  • Norms are generally used to measure the size or magnitude of the object that they are applied to.
  • One norm you are familiar with is the absolute value function for real numbers.
  • We can define lots of norms for objects, but for vectors in Linear Algebra, we’ll be interested in the \(\ell_2\) (or Euclidean) norm, which we encountered a few slides ago.

The \(\ell_2\) (Euclidean) norm of a vector \(\vec{v}\) measures its magnitude, and is given by

\[\|\vec{v}\| = \sqrt{\left(\vec{v}\cdot\vec{v}\right)} = \sqrt{\left(v_1^2 + v_2^2 + \cdots + v_n^2\right)}\]

Example: You saw two examples when we first encountered the inner-product, but calculate the length of the vector \(\vec{v} = \begin{bmatrix} 2\\ 0\\ -4\\ 5\end{bmatrix}\) for practice.

Special Vectors

With the vector operations defined above, we can define a few special classes of vector that we’ll encounter later in our course (but that you may have already encountered elsewhere).

Unit Vectors: A vector of magnitude \(1\), that is a vector \(\vec{v}\) such that \(||\vec{v}|| = 1\), is called a unit vector.

Constructing a Unit Vector: Given any vector \(\vec{w}\), which is not the zero-vector, we can construct the unit vector pointing in the direction of \(\vec{w}\) using

\[\vec{u_w} = \frac{\vec{w}}{||\vec{w}||}\]

Example: Given the vector \(\vec{v} = \begin{bmatrix} 2\\ 8\\ -3\end{bmatrix}\), construct a unit vector pointing in the same direction as \(\vec{v}\).

Special Vectors

With the vector operations defined above, we can define a few special classes of vector that we’ll encounter later in our course (but that you may have already encountered elsewhere).

Normal Vectors: A vector \(\vec{n}\) that is orthogonal (perpendicular) to a surface or another vector is called a normal vector.

To find vectors normal to a given vector, we remember that \(\vec{v}\) and \(\vec{n}\) are orthogonal if \(\vec{v}\cdot \vec{n} = 0\).

Examples: We’ll wait on the construction of orthogonal/normal vectors for now, but…

  • given a single vector, we can use the fact that the dot product between that vector and a vector normal to it will be \(0\).
  • given a single vector, we can multiply be an appropriate rotation matrix in order to obtain a vector normal to the original.
  • we can use the cross-product to construct a vector orthogonal to two vectors in three dimensions.
  • you can also use a procedure called the Gram-Schmidt orthogonalization process

Summary

We’ve covered quite a bit of ground here, including how to…

  • add and subtract vectors of compatible size

  • compute different types of products involving vectors

    • scalar multiplication
    • inner products
    • cross products
    • outer products

  • calculate the magnitude (length, or \(\ell_2\)-norm) of a vector

  • determine the angle between two vectors, including whether two vectors are orthogonal

  • identify and construct unit vectors

  • identify normal vectors

Homework




\[\Huge{\text{Start Homework 1}}\] \[\Huge{\text{on MyOpenMath}}\]

Next Time…




\(\Huge{\text{Matrices and Arithmetic}}\)
